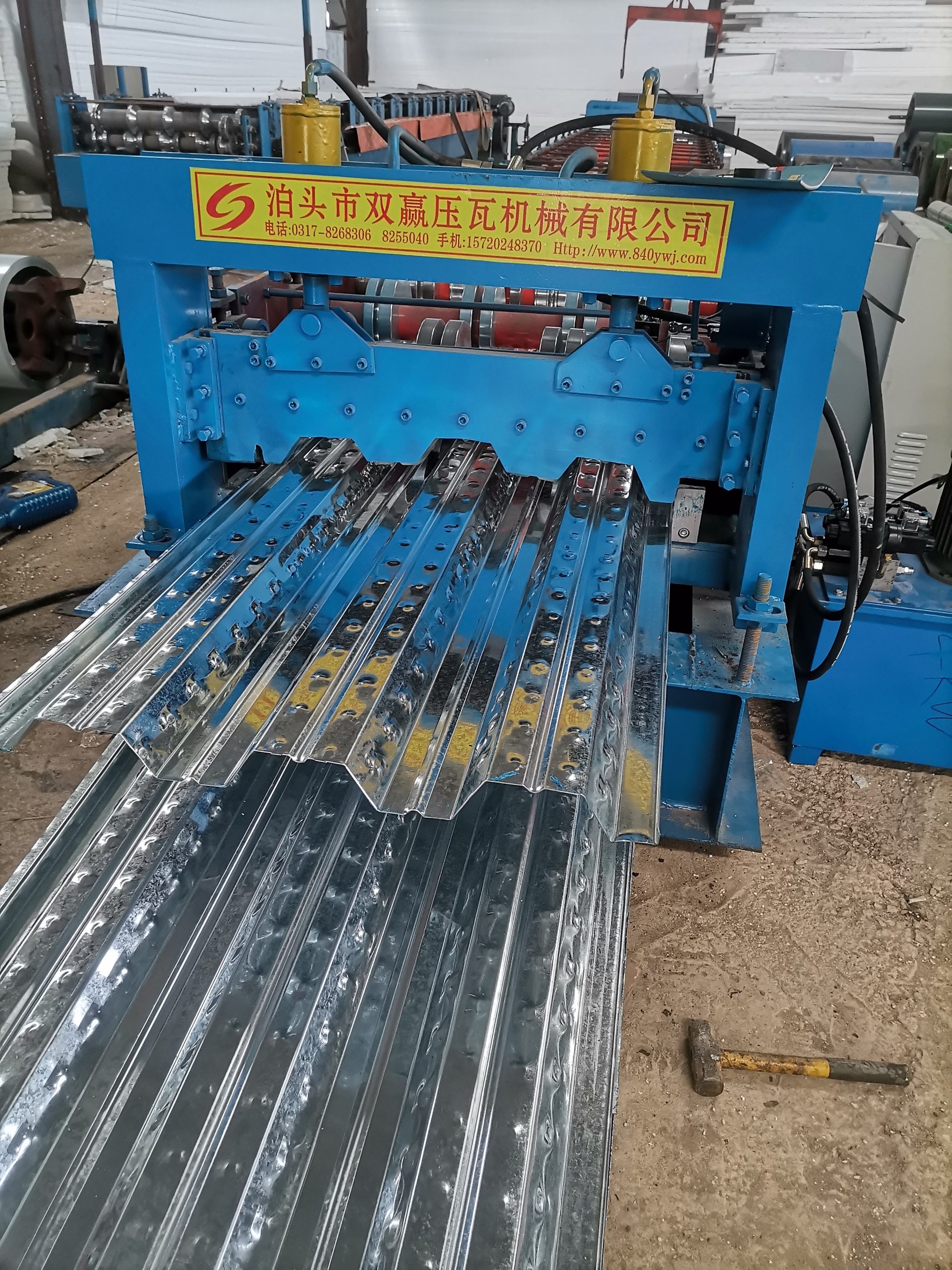

750-type floor decking machine
Technical parameters of 750-type floor decking machine:
Forming part:
Number of forming rows: Generally 20 rows.
Shaft diameter: The shaft is made of 45# steel. After processing of the solid shaft, the shaft size is usually 90mm.
Roller material: Processed from 45# steel and hard chromium plated on the surface to improve wear resistance and service life.
Feed width: The feed width is about 1000mm.
Forming area: The effective width after forming is 750mm, the unfolded width is 1000mm, and the utilization rate is about 75%.
Machine body part:
Machine body structure: The machine body is welded with 300-350mm H-shaped steel, and the middle plate is welded with 16-20mm steel plate to ensure the stability and strength of the machine.
Middle plate connection: The middle plate connection adopts cast steel pull plates to ensure that the machine does not deform when pressing thick plates.
Transmission part:
Transmission mode: Chain wheel and chain transmission are adopted. The chain size is 2 inches.
Reducer: Equipped with 8# double 11kW planetary cycloidal reducer to make the machine run smoothly and without noise.
Shearing part:
Hydraulic system: The hydraulic system adopts gear pumps, such as CDF-10 gear pumps. The motor power is generally 4kW. It runs smoothly, without noise and has a long service life.
Shearing method: The shearing adopts a thickened type of middle plate welding to ensure the accuracy and stability of shearing.
Control system:
Control mode: The computer control system adopts a highly intelligent industrial electronic programmer PLC and frequency converter control system. The operation is simple, the accuracy is accurate, and the length accuracy is less than 2mm.
Production speed: The panel output speed is generally 12-15 meters/minute.
Equipment size and weight:
Equipment size: The machine length is about 13 meters, the width is 1.6 meters, and the height is about 1.5 meters.
750-type floor decking machine Equipment weight: The equipment weight is about 10 tons.
