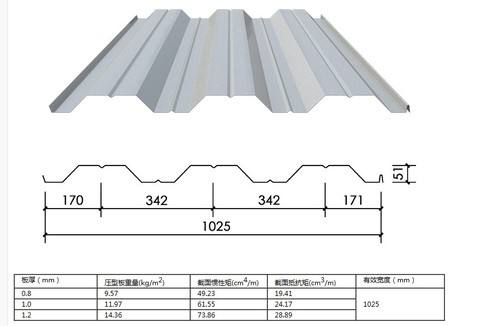

1025 floor decking machine
The products produced by the 1025 floor decking machine have the characteristics of light weight, high strength, large load-bearing capacity, and good seismic resistance. They are widely used in the field of multi-story and high-rise steel structure buildings. The products are widely used in power plants, power equipment companies, car showrooms, steel structure factories, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic stadiums and other steel structure buildings.
This 1025 floor decking machine equipment meets the requirements of rapid construction of the main steel structure and can provide a firm working platform in a short time. Moreover, profiled steel plates can be laid on multiple floors and the flow construction of layered pouring of concrete slabs can be adopted. In the use stage, the floor deck serves as the tensile reinforcement of the concrete floor slab, which also increases the stiffness of the floor slab and saves the consumption of steel bars and concrete.
1025 Floor Decking Machine Technical parameters:
- Passive discharging: Manual tensioning and passive discharging.
- Load-bearing capacity of discharging frame: 8 tons.
- Frame: Welded with 400H steel.
- Forming machine guide feed frame form: Lateral slide plate type.
- Forming machine form: Wall plate chain drive, wall plate thickness is 20mm.
- Shaft diameter: 90mm.
- Chain: 2-inch chain.
- Motor power of forming machine: 2 11KW reducers.
- Linear speed of forming machine: 8 – 10m/min.
- Number of passes of forming machine: 22 passes.
- Roller material: High-quality steel quenched and hard chromium plated on the surface.
- Motor of hydraulic station: 4kW.
- Oil pump of hydraulic station: Gear pump.
- Cutting method: Hydraulic shearing.
- Material of forming shear blade: Cr12.
- Heat treatment of shear blade: HRC58° – 60°.
- Rolling thickness: 0.8 – 2.0mm.
- Unfolded width of material: 1250mm.
- Length sizing accuracy: ±2mm.
- The computer is controlled by Delta PLC.
